ROTARY
Rotary is the ideal solution for wrapping the particularly unstable products with stretch film.
The ability to keep the pallet still and stabilizing products with a rotating arm is often a necessity for many industries. The Rotary family itself as superior quality product in a technological environment important for end-line packaging. This machine has excellent technical and construction and is the ideal choice to run the pallet wrapping reliably and effectively.

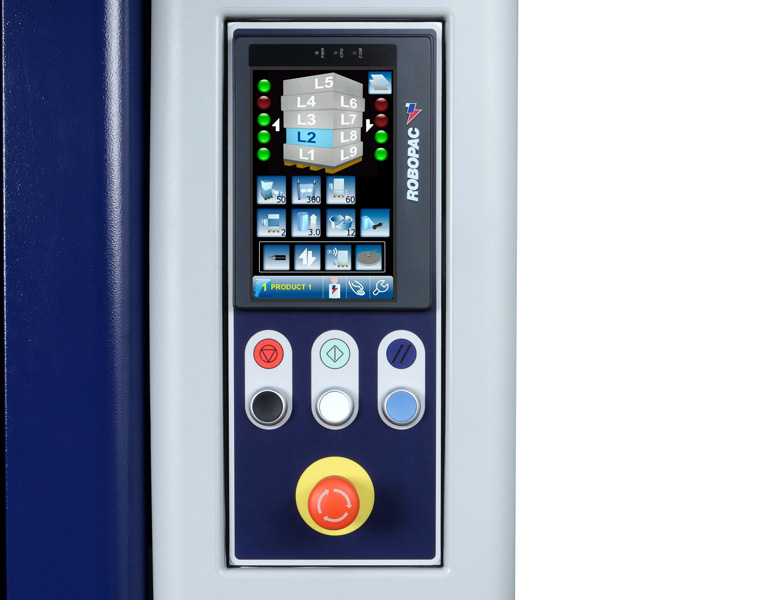

Control Panel
COLOUR TOUCH SCREEN
The control panel is the brain of Rotary, here lies the heart of the machine and technology Robopac ie Multilevel-Control …
Rconnect
Innovation and connection at the service of the customer.
Carriages

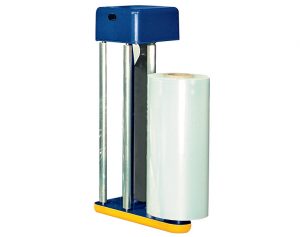

FR CARRIAGE
Spool carriage with electromagnetic brake on return roller. Stretch tension adjustable from control panel. Brake coupling after cycle start for easy film hooking to pallet base. The electromagnetic dust brake ensure an high-precision control of the braking torque and don’t emit any polluting material.
PDS CARRIAGE
PDS Carriage with double pre-stretching system that can be activated from control panel. The carriage is fitted with a pre-stretching system fixed at 250%.By activating the “Stretch Control” control, the carriage can automatically switch to activate the stretch variable of electromagnetic clutch positioned on the first roll of stretch.

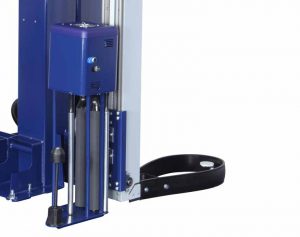

PVS CARRIAGE
The PVS Carriage with powered stretch system controlled by two independent motors. Stretch ratio adjustable from panel board from 150% up to 400%. Force to the load controlled by patented electronic device and adjustable from panel board.
HORIZONTAL ROTATING ARM EXTENDABLE
A robust structure made of steel plate 5 mm thick forms the backbone of this powerful rotating horizontal arm. Robopac has gone further and has produced the first adjustable rotating arm machine. It is now possible to adjust the length of the rotating arm to its maximum horizontal movement, allowing the user to wrap products with maximum dimensions 1400 mm x 1400 mm. Wrapping dimensions of the Rotary can also be reduced by simply adjusting the minimum length of the horizontal rotating arm. This allows wrapping products down to a size of 1200 mm x 1200 mm.
ROTARY W
Rotary is also available as a “wall” in the version W-Wall
Get a quote
At DL Packaging we go the extra mile to ensure you get the packaging machine that’s right for you. Our experts will assess your needs and provide you with our recommendations.
